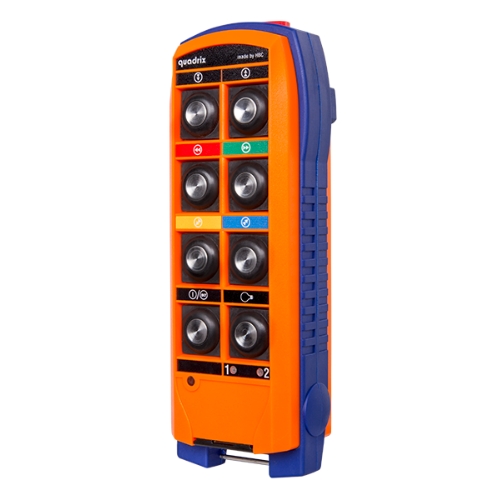

Quadrix

Smart design for relaxed work.

Categories: Transmitters, HBC-radiomatic

Operation

Operating elements & control functions

8 two-step push buttons
Up to 16 control functions (on / off)

Battery technology

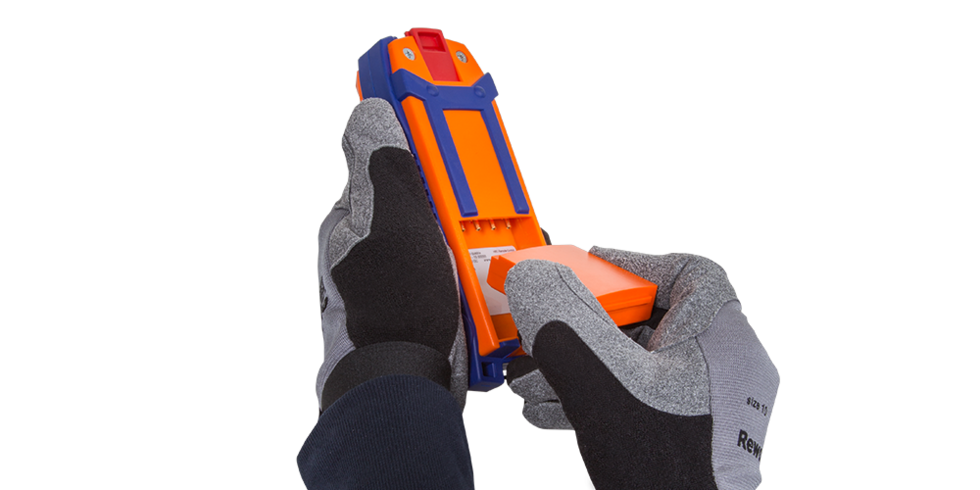

Rechargeable NiMH exchange battery
Continuous operating time: up to 30 hours

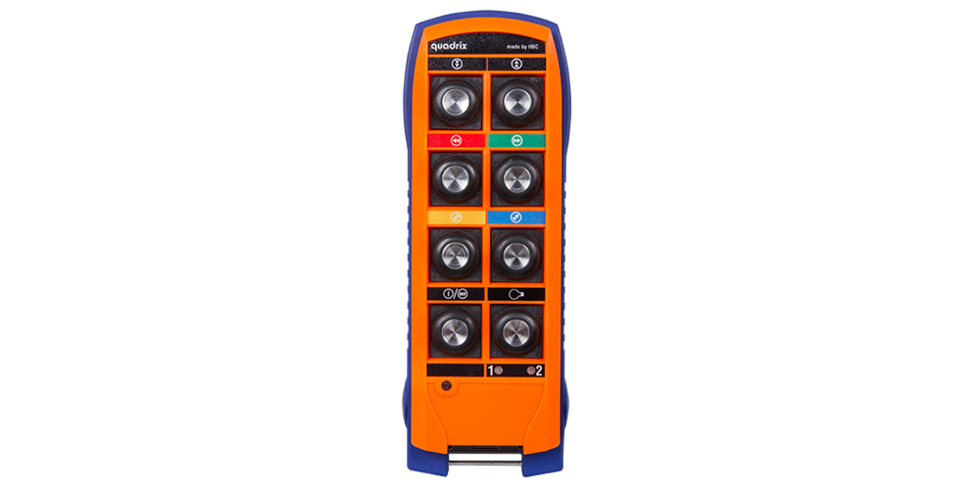

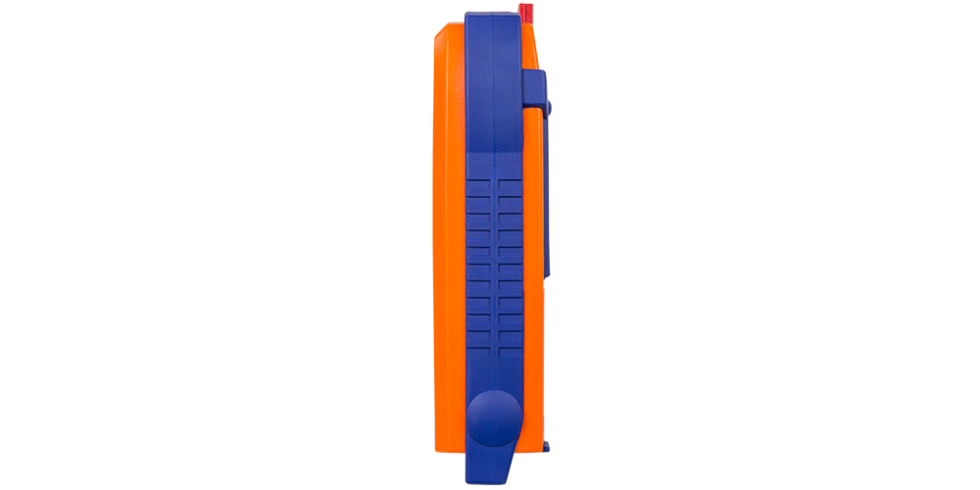

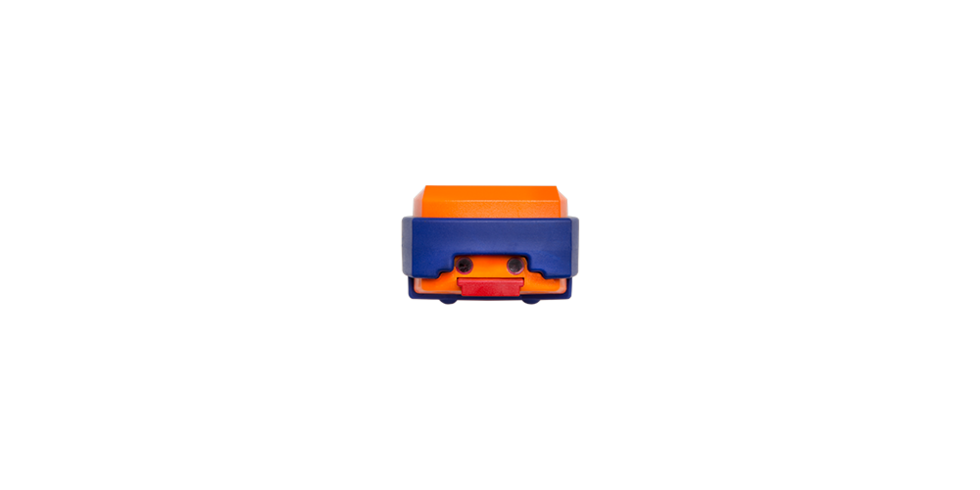

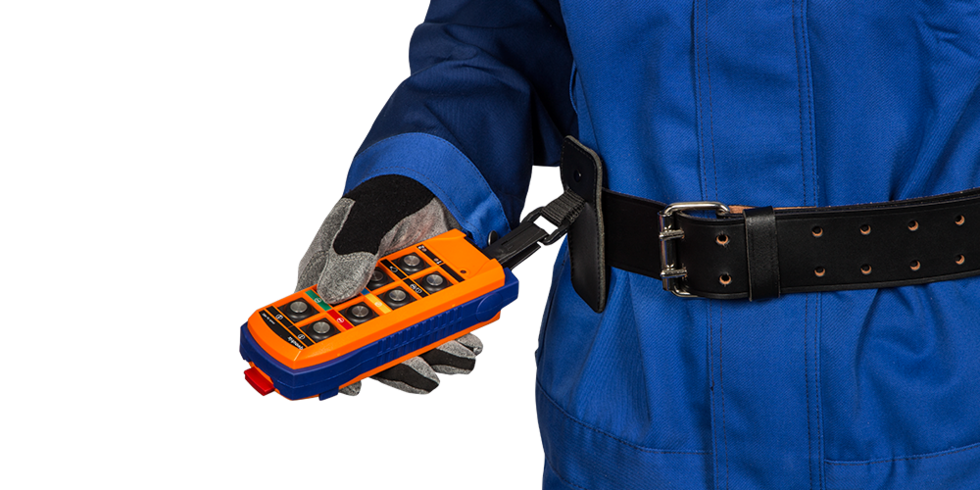

Dimensions & specifications

Housing material / protection class:

Plastic housing,
Protection class IP 65

Operating temperature range:

-25 °C … +70 °C
(-13 °F … +158 °F)

Weight:

approx. 330 g (0.7 lb.)

Dimensions:

180 x 65 x 43 mm
(7.1 x 2.6 x 1.7 in.)

Safety

Protection from unauthorized use

Activation via HBC start sequence or merlin^® TUC.

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Frequency management

Manual frequency switch

With the manual frequency switch, the operator can switch to the next radio channel by pressing a button.

Your advantages:

The process is easy to understand and offers a quick solution.

How it works:

To switch the radio channel the operator presses the Start button.
If this channel is occupied by another device, it is possible to switch again to the next frequency.
16 radio channels are available.

Frequency ranges

2.4GHz Technology

country-independent use:
2402 – 2480 MHz

HBC features

Tandem operation

Tandem operation allows the operator to control up to 4 cranes simultaneously with just one transmitter.

Pre-selection of trolley / hoist

With this function, where 2 trolleys are available, the operator can select either an individual trolley or both trolleys for simultaneous control.

radiomatic® infrakey

With radiomatic® infrakey, the operator can only activate the radio system when there is an infrared connection between the transmitter and the receiver.

radiomatic® shock-off / roll-detect / zero-g / inclination switch

The safety features can detect different dangerous situations and depending on the desired version, react in one of the following manners:

The complete radio system will shut down.

Safety-relevant functions will be deactivated.

A previously defined function will be activated (e.g. horn).

merlin® TUC (Transmitter User Card) – user identification

The merlin® TUC (Transmitter User Card) serves as the key to start up the radio control.
