Operation

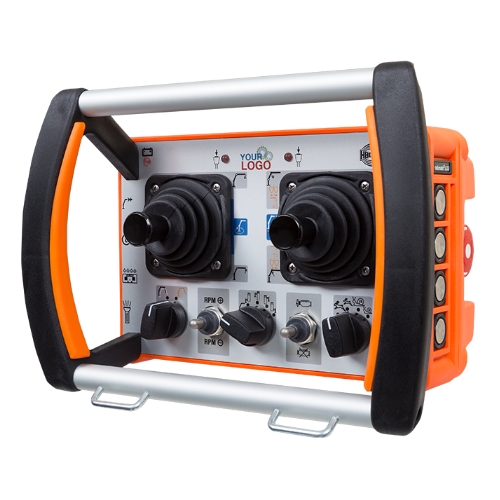

Operating elements & control functions
- Up to 2 joysticks or up to 6 linear levers
- Diverse combinations of push buttons, toggle switches and rotary switches (maintained / spring-return)

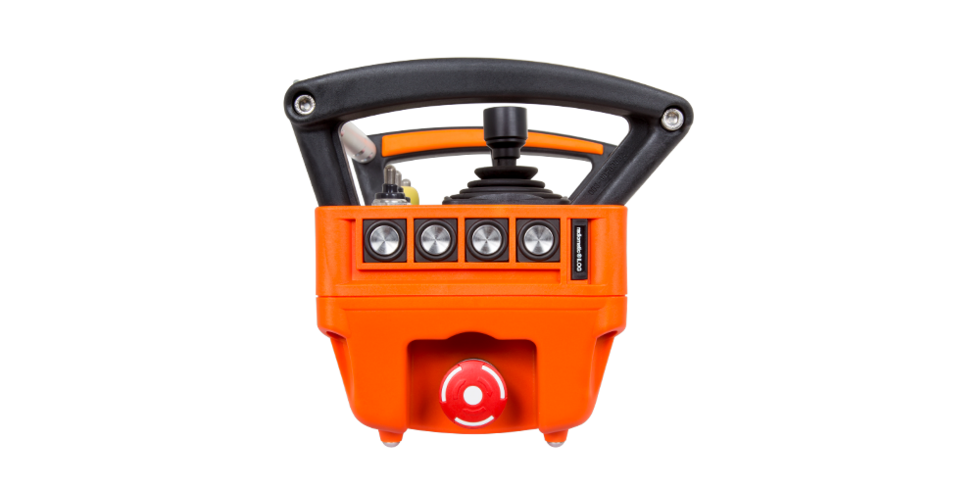

- STOP impact switch
- On the side: up to 8 push buttons
- Up to 32 control functions (on / off)
- Up to 6 analog functions for joysticks / linear levers
- Up to 4 additional analog functions, e. g. for potentiometer switches
Optional:
- Joystick with integrated button
- Z-axis switch for the simultaneous control of 3 drives
Battery technology

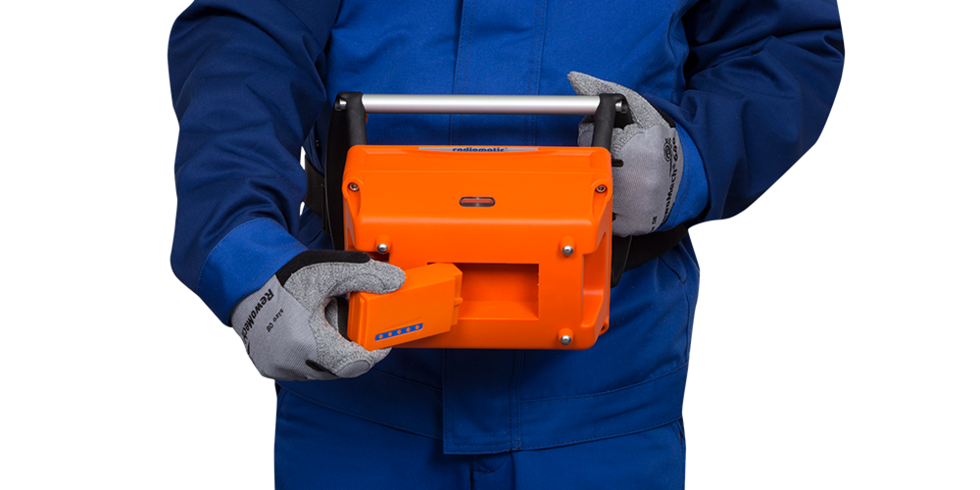

- Rechargeable Li-ion exchange battery; optional: capacity gauge via LEDs
- continuous operating time: typically 40 hours

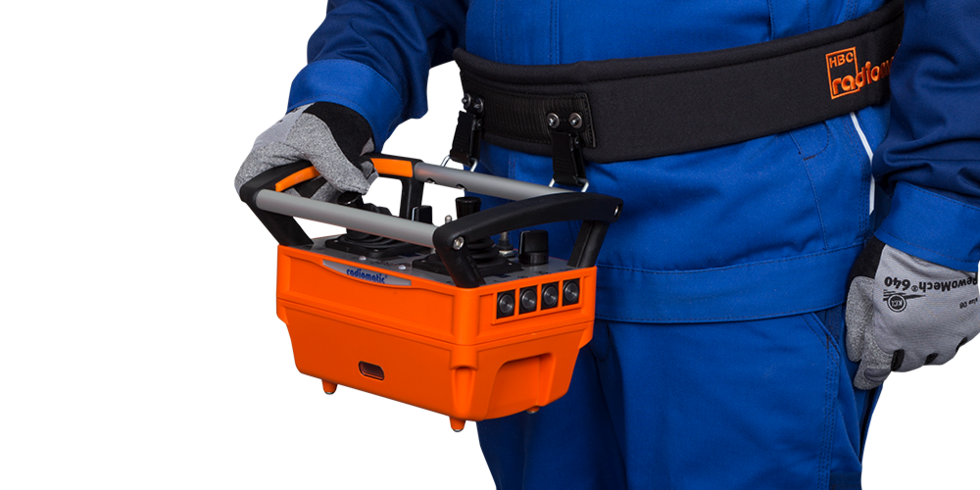

Dimensions & specifications
Housing material / protection class:
Plastic housing,
Protection class IP 65
Operating temperature range:
-25 °C … +70 °C
(-13 °F … +158 °F)
Weight:
approx. 2.0 kg (4.41 lbs.)

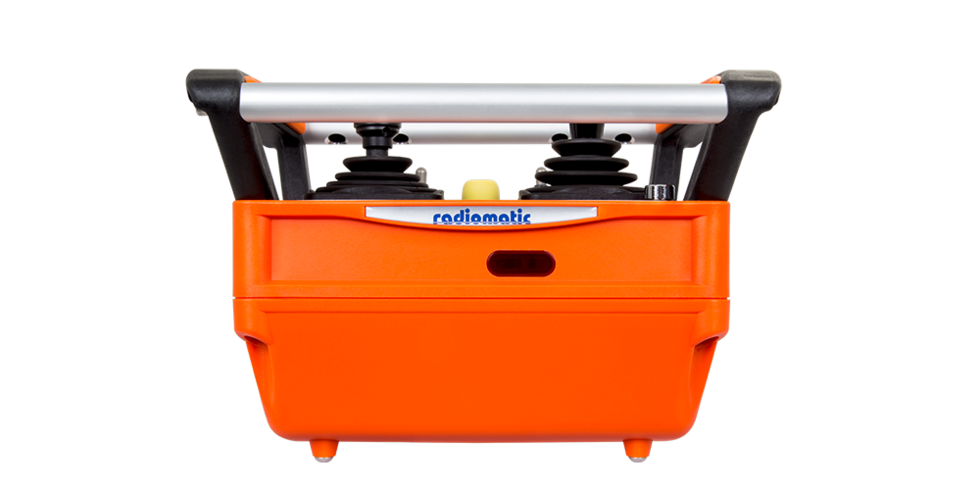

Dimensions:
178 x 262 x 182 mm
(7.00 x 10.31 x 7.17 in.)
Safety
Protection from unauthorized use
Activation via HBC start sequence or merlin® TUC.
E-STOP
PL d category 3 according to EN ISO 13849-1:2015
Auto Power Off
Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)
Frequency management
Manual frequency switch
With the manual frequency switch, the operator can switch to the next radio channel by pressing a button.
Your advantages:
- The process is easy to understand and offers a quick solution.
How it works:
- To switch the radio channel the operator presses the Start button.
- If this channel is occupied by another device, it is possible to switch again to the next frequency.
- 16 radio channels are available.
Frequency ranges
2.4GHz Technology
country-independent use:
2402 – 2480 MHz
HBC features
Tandem operation
Tandem operation allows the operator to control up to 4 cranes simultaneously with just one transmitter.
Pre-selection of trolley / hoist
With this function, where 2 trolleys are available, the operator can select either an individual trolley or both trolleys for simultaneous control.
Catch-release
The catch-release function allows control of a crane or machine with two or more radio controls. Two or more operators can take turns working with the same crane or machine without having to switch the control device.
