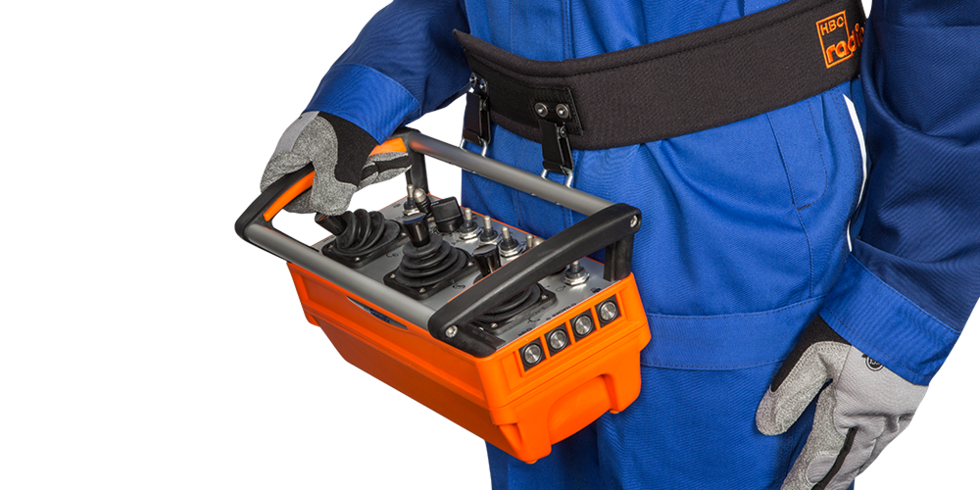

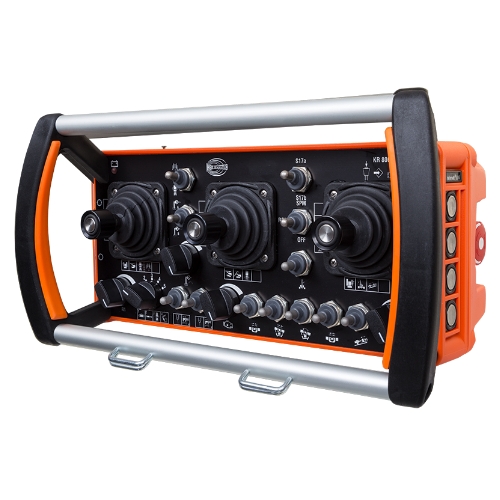

Spectrum 3

The renowned spectrum classic with XL equipment.

Operation

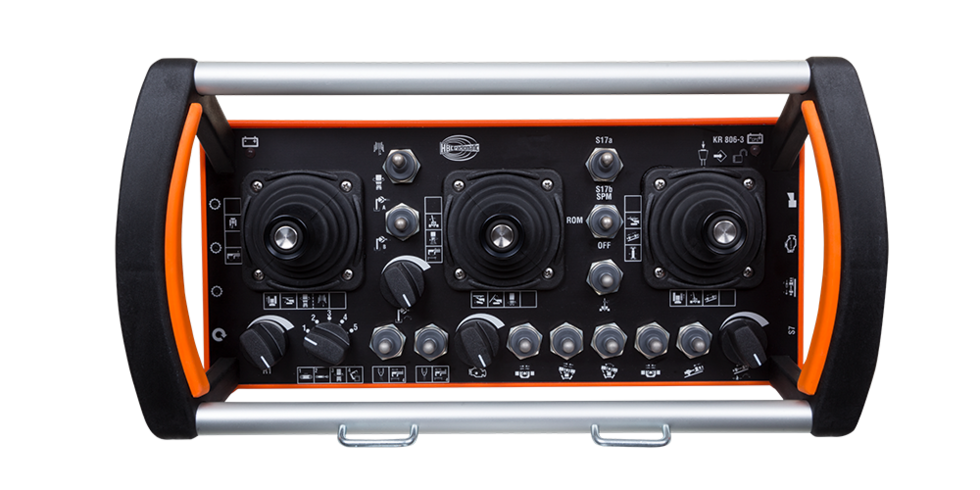

Operating elements & control functions

Up to 4 joysticks or up to 8 linear levers
Individual combination of push buttons, toggle switches, rotary switches (maintained / spring-return) and other operating elements

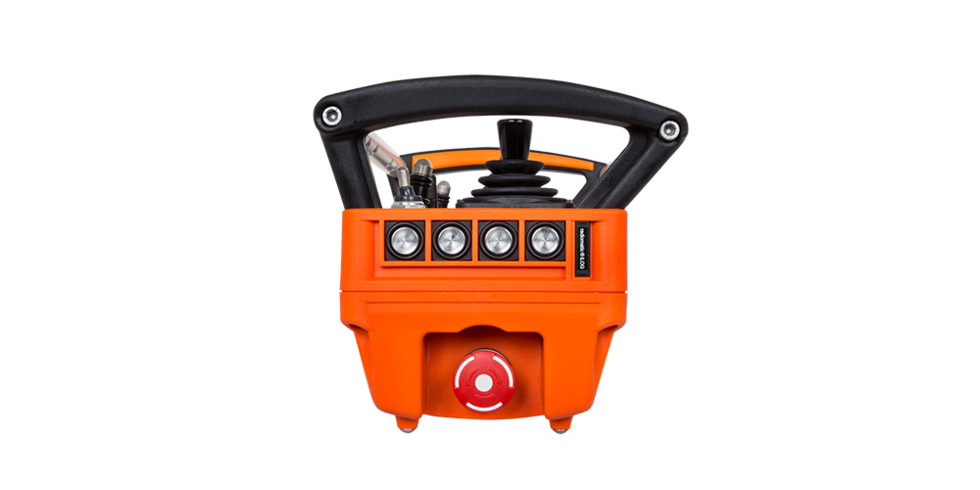

On the side: up to 8 one-step push buttons
STOP impact switch
Up to 32 control functions (on / off)
Up to 10 analog functions for joysticks / linear levers
Up to 4 additional analog functions, e. g. for potentiometer switches

Optional:

Battery technology

Optional:

Housing material / protection class:

Plastic housing,
Protection class IP 65

Operating temperature range:

-25 °C … +70 °C
(-13 °F … +158 °F)

Weight:

approx. 3.0 kg

Dimensions:

178 x 358 x 182 mm
(7.00 x 14.09 x 7.17 in.)

Protection from unauthorized use

Activation via HBC start sequence or merlin^® TUC.

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Manual frequency switch

With the manual frequency switch, the operator can switch to the next radio channel by pressing a button.

Your advantages:

How it works:

To switch the radio channel the operator presses the Start button.
If this channel is occupied by another device, it is possible to switch again to the next frequency.
16 radio channels are available.
