Operation
Operating elements & control functions

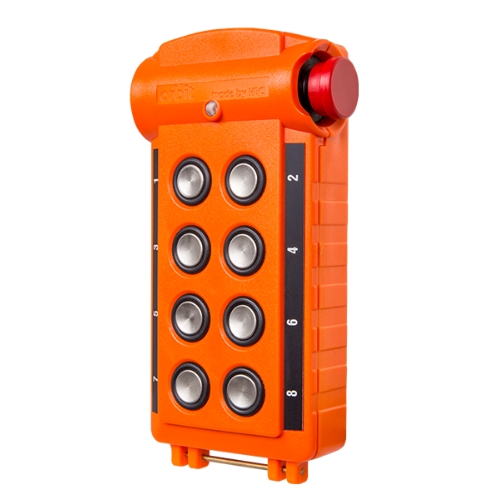

8 one-step push buttons
STOP impact switch
Up to 8 control functions (on / off)
Up to 3 inputs for optional rotary switch
Battery technology

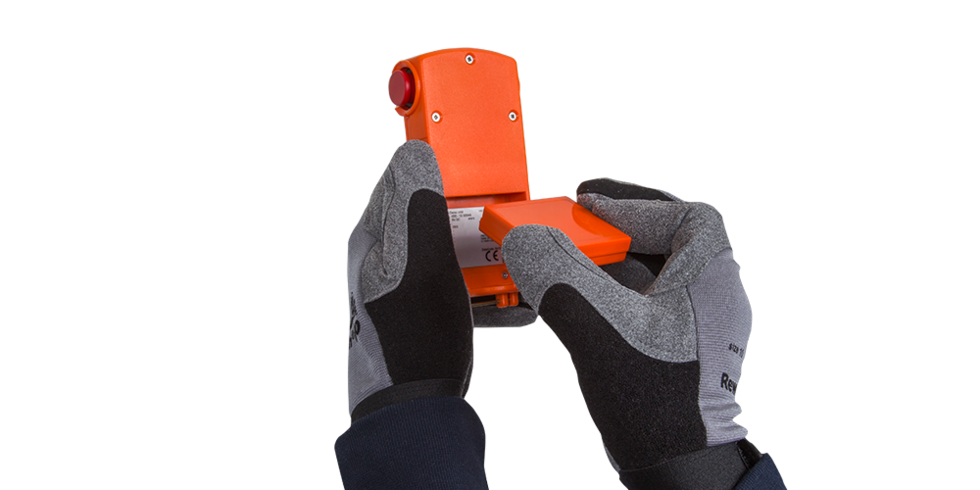

Rechargeable Li-ion exchange battery
Continuous operating time: up to 30 hours
Dimensions & specifications
Housing material / protection class:
Plastic housing
Protection class IP 55
Operating temperature range:
-25 °C … +70 °C
(-13 °F … +158 °F)
Weight:
approx. 300 g (0.66 lb.)

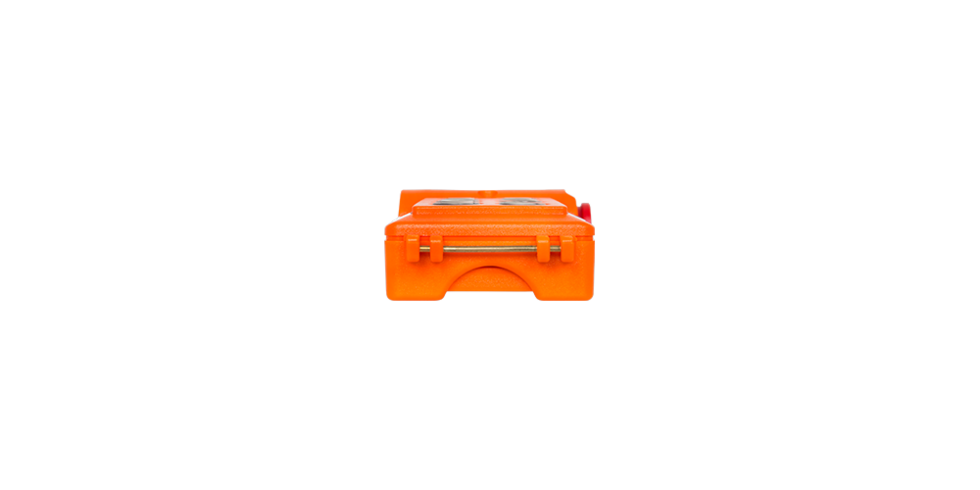

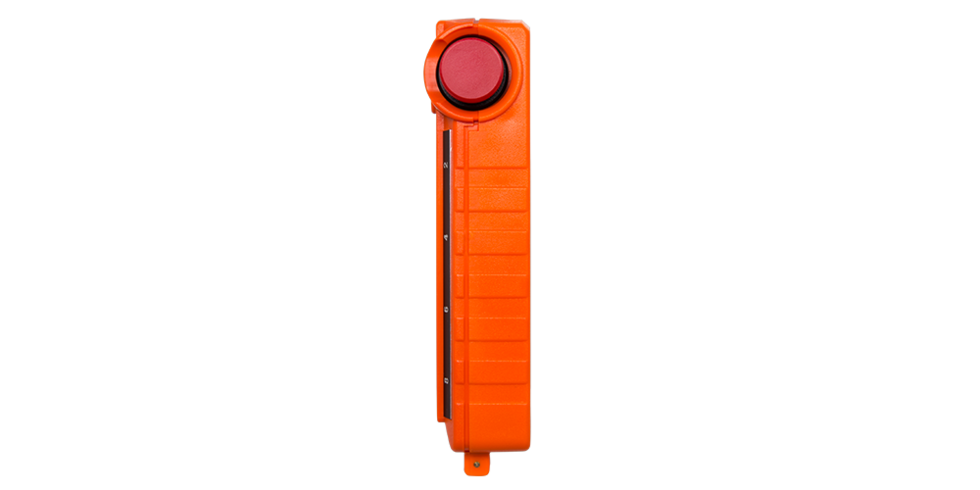

Dimensions:
143 x 72 x 34 mm
(5.6 x 2.8 x 1.4 in.)
Safety
Protection from unauthorized use
Activation via HBC start sequence.
E-STOP
PL d category 3 according to EN ISO 13849-1:2015
Frequency management
Adaptive Frequency Hopping
HBC’s advanced fully automatic frequency management comes standard with all our 2.4 GHz radio systems.
Your advantages:
A manual frequency coordination with other radio users is not necessary.
The operator can work without interruption, even in areas with many radio users. This saves valuable time.
This technology is approved almost worldwide, which makes warehousing much easier: instead of different country-specific high frequency modules, in most cases, just a single 2.4 GHz module can be used.
In countries where HBC radio systems are approved, the 2.4 GHz technology is available without registration or license fees. This saves costs and effort.
How it works:
Frequency management is already included in the radio system and works automatically.
Frequency ranges
2.4GHz Technology
country-independent use:
2402 – 2480 MHz
HBC features
Bank switch for additional operating levels
With the bank switch for additional operating levels, the function range of your radio control can be conveniently and easily extended.
