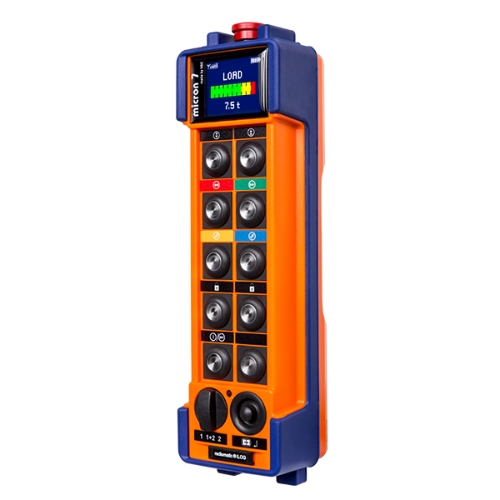

Micron 7

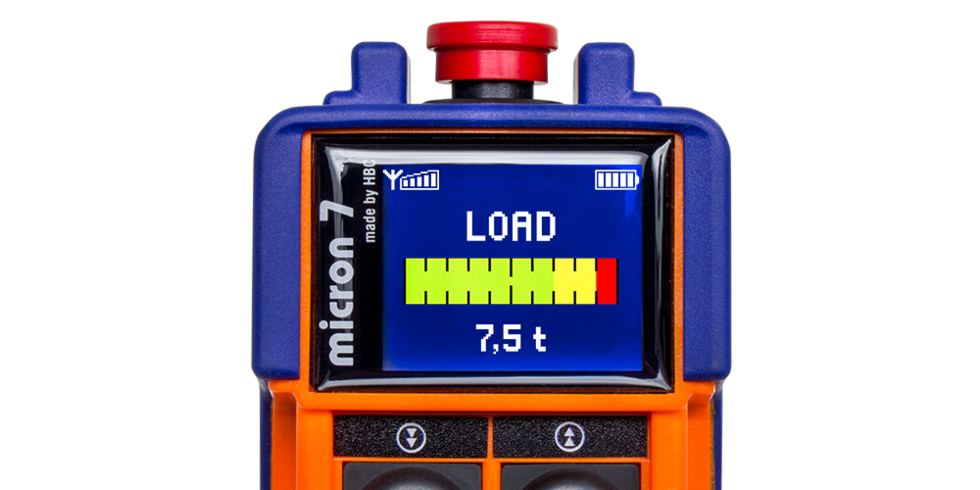

The high-performing push button transmitter with built-in color display.

Categories: Transmitters, HBC-radiomatic

Operation

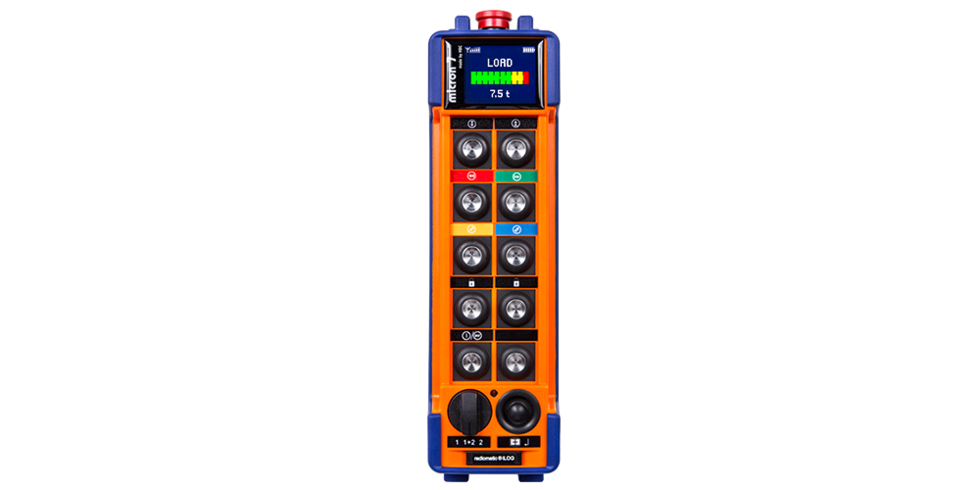

Operating elements & control functions

10 two-step push buttons
1 rotary switch
radiomatic^® yuCON with 2 axes and confirmation button for display navigation and customized settings
STOP impact switch
Up to 26 control functions (on / off)
Additional control functions available through the display (softkeys)

Battery technology

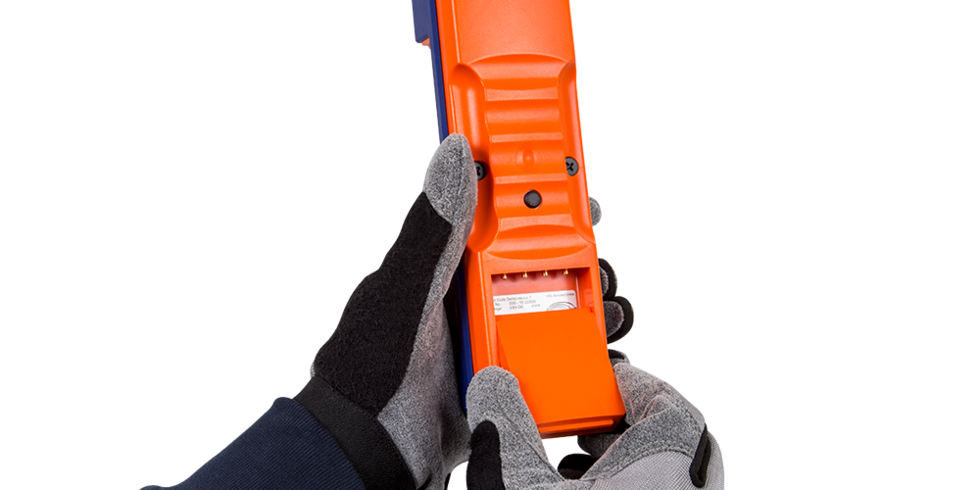

Rechargeable NiMH exchange battery
Continuous operating time: up to 17 hours

Dimensions & specifications

Housing material / protection class:

Plastic housing,
Protection class IP 65

Operating temperature range:

-20 °C … +70 °C
(-4 °F … +158 °F)

Weight:

approx. 550 g (1.2 lb.)

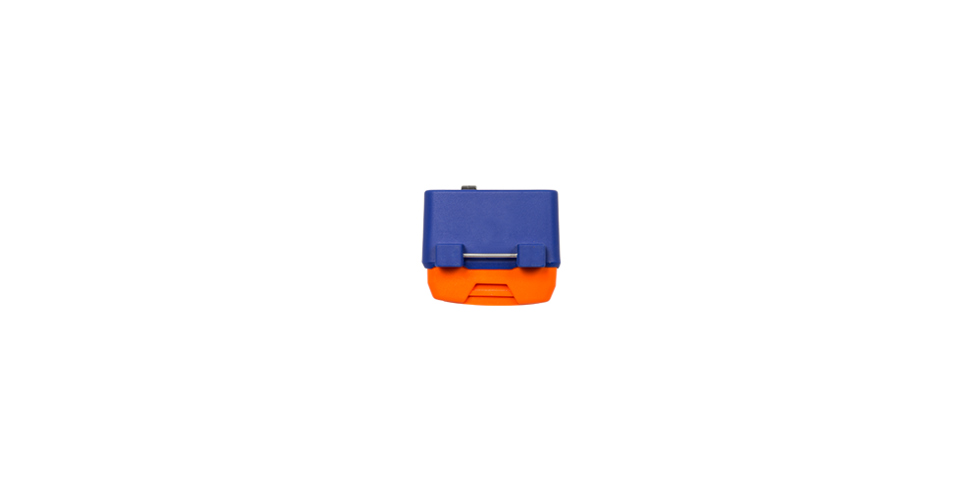

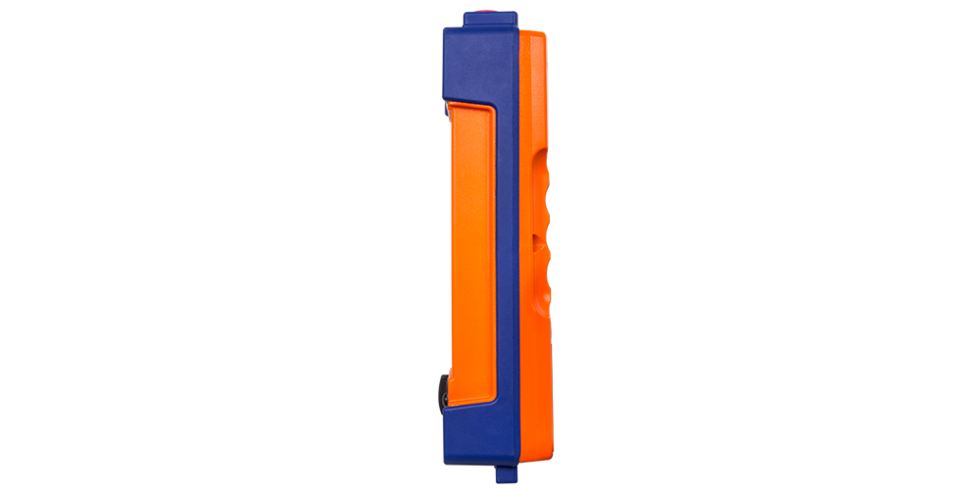

Dimensions:

240 x 68 x 58 mm
(9.5 x 2.7 x 2.3 in.)

Safety

Protection from unauthorized use

Activation via HBC start sequence or merlin^® TUC.

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Frequency management

Adaptive Frequency Hopping

HBC’s advanced fully automatic frequency management comes standard with all our 2.4 GHz radio systems.

Your advantages:

A manual frequency coordination with other radio users is not necessary.
The operator can work without interruption, even in areas with many radio users. This saves valuable time.
This technology is approved almost worldwide, which makes warehousing much easier: instead of different country-specific high frequency modules, in most cases, just a single 2.4 GHz module can be used.
In countries where HBC radio systems are approved, the 2.4 GHz technology is available without registration or license fees. This saves costs and effort.

How it works:

Frequency management is already included in the radio system and works automatically.

Frequency ranges

2.4GHz Technology

country-independent use:
2402 – 2480 MHz

HBC features

Tandem operation

Tandem operation allows the operator to control up to 4 cranes simultaneously with just one transmitter.

Pre-selection of trolley / hoist

With this function, where 2 trolleys are available, the operator can select either an individual trolley or both trolleys for simultaneous control.

Catch-release

The catch-release function allows control of a crane or machine with two or more radio controls. Two or more operators can take turns working with the same crane or machine without having to switch the control device.
