Technos 2

Smart technos design with large function range and color TFT.

Categories: Transmitters, HBC-radiomatic

Operation

Operating elements & control functions

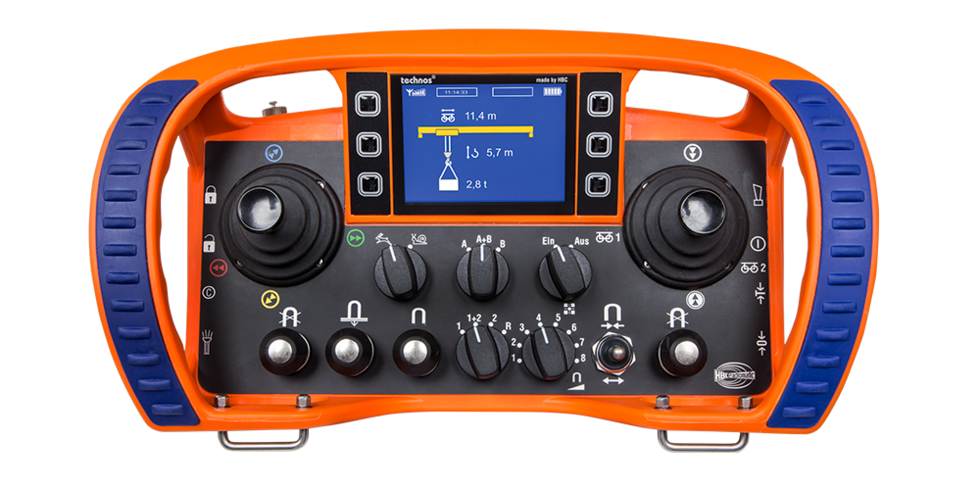

Up to 3 joysticks or up to 8 linear levers
Individual combination of push buttons, toggle switches, rotary switches (maintained / spring-return) and other operating elements

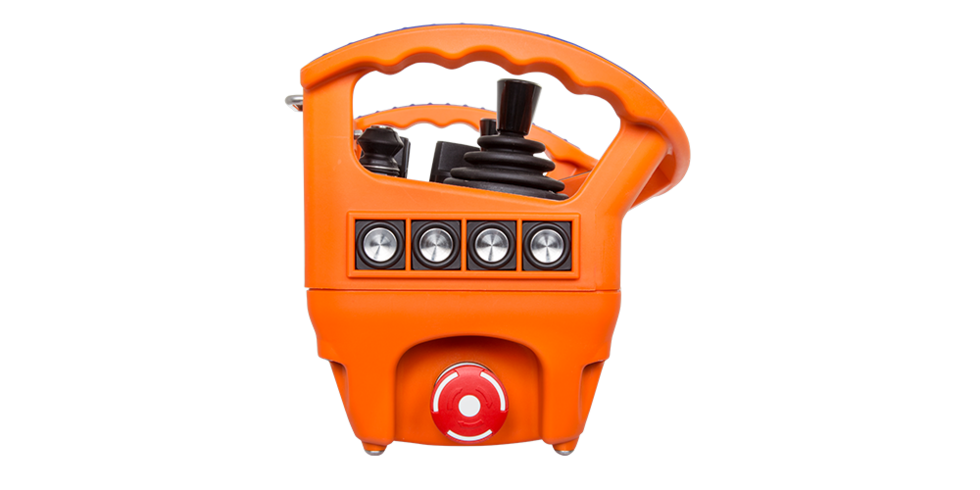

On the side: up to 8 one-step push buttons
STOP impact switch
Up to 36 control functions (on / off)
Up to 10 analog functions

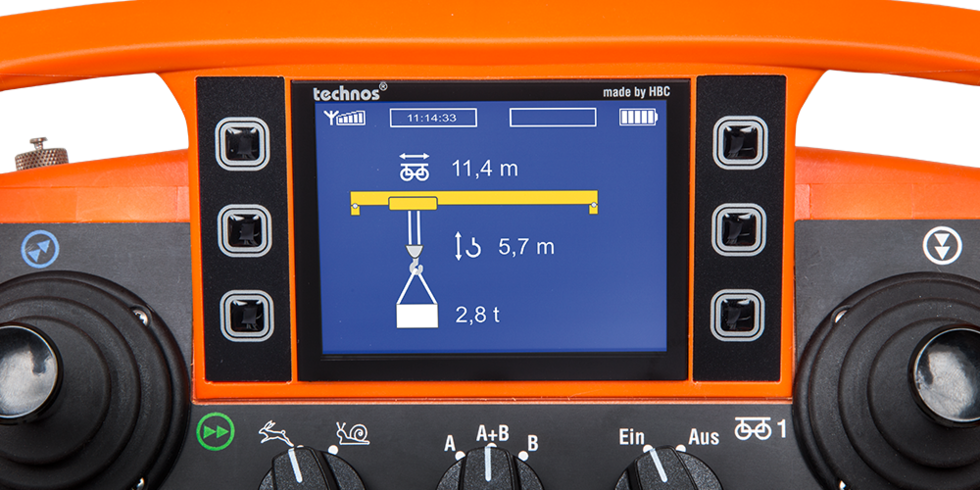

Additional control functions available through the display (softkeys)

Optional:

Joystick with integrated button
Z-axis switch for the simultaneous control of 3 drives

Battery technology

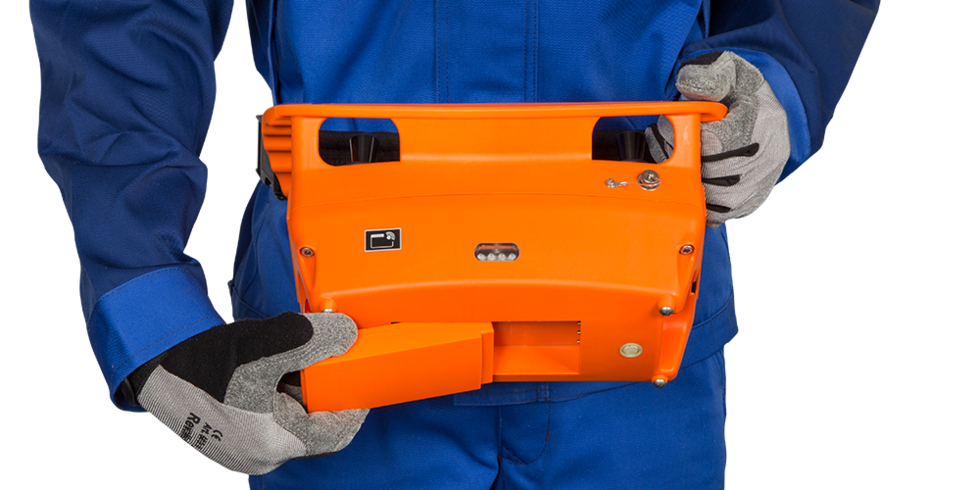

Rechargeable Li-ion exchange battery
Continuous operating time: up to 18 hours

Dimensions & specifications

Housing material / protection class:

Plastic housing,
Protection class IP 65

Operating temperature range:

-20 °C … +70 °C
(-4 °F … +158 °F)

Weight:

approx. 2.3 kg (5.07 lbs.)

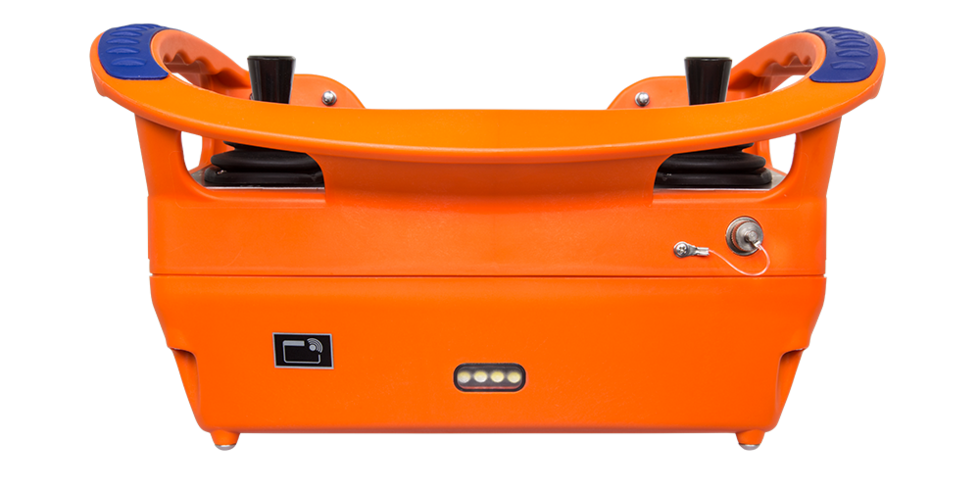

Dimensions:

171 x 315 x 180 mm
(6.73 x 12.40 x 7.09 in.)

Safety

Protection from unauthorized use

Activation via HBC start sequence or merlin^® TUC.

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Frequency management

manual frequency switch

With the manual frequency switch, the operator can switch to the next radio channel by pressing a button.

Your advantages:

The process is easy to understand and offers a quick solution.

How it works:

To switch the radio channel the operator presses the Start button.
If this channel is occupied by another device, it is possible to switch again to the next frequency.
16 radio channels are available.

Frequency ranges

2.4GHz Technology

country-independent use:
2402 – 2480 MHz

HBC features

Tandem operation

Tandem operation allows the operator to control up to 4 cranes simultaneously with just one transmitter.

Pre-selection of trolley / hoist

With this function, where 2 trolleys are available, the operator can select either an individual trolley or both trolleys for simultaneous control.

Catch-release

The catch-release function allows control of a crane or machine with two or more radio controls. Two or more operators can take turns working with the same crane or machine without having to switch the control device.
