Operation
Operating elements & control functions

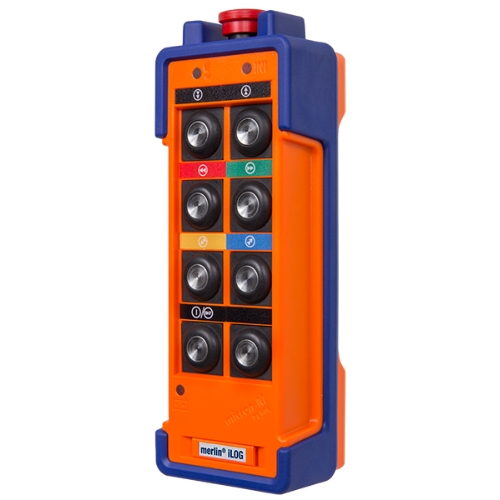

- 8 two-step push buttons
- STOP impact switch
- Up to 16 control functions (on / off)
Battery technology

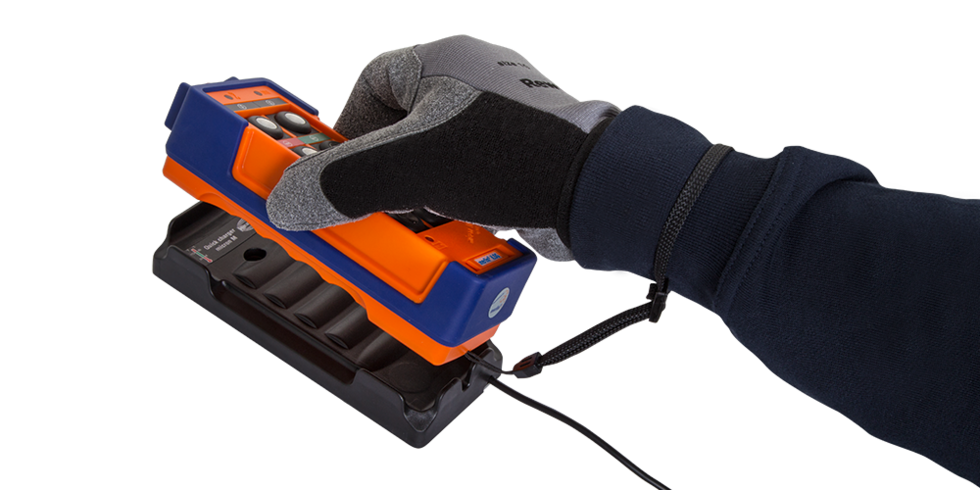

- Built-in rechargeable Li-ion battery with inductive charging
- Continuous operating time: up to 34 hours
Dimensions & specifications
Housing material / protection class:
Plastic housing,
Protection class IP 65
Operating temperature range:
-20 °C … +70 °C
(-4 °F … +158 °F)
Weight:
Approx. 320 g (0.71 lbs.)

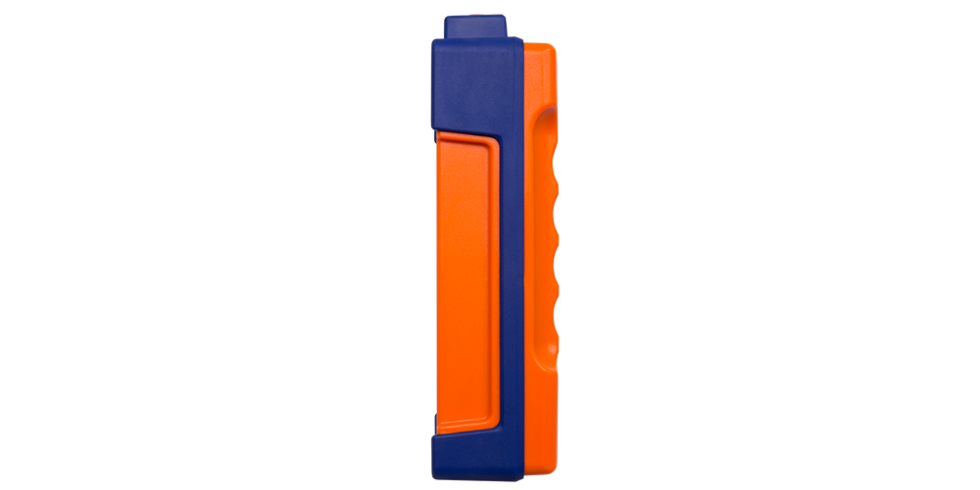

Dimensions:
176 x 63 x 47 mm
(6.93 x 2.49 x 1.87 in.)
Safety
Protection from unauthorized use
Activation via HBC start sequence or merlin® TUC.
E-STOP
PL d category 3 according to EN ISO 13849-1:2015
Auto Power Off
Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)
Frequency management
Adaptive Frequency Hopping
HBC’s advanced fully automatic frequency management comes standard with all our 2.4 GHz radio systems.
Your advantages:
A manual frequency coordination with other radio users is not necessary.
The operator can work without interruption, even in areas with many radio users. This saves valuable time.
This technology is approved almost worldwide, which makes warehousing much easier: instead of different country-specific high frequency modules, in most cases, just a single 2.4 GHz module can be used.
In countries where HBC radio systems are approved, the 2.4 GHz technology is available without registration or license fees. This saves costs and effort.
How it works:
Frequency management is already included in the radio system and works automatically.
Frequency ranges
2.4GHz Technology
country-independent use:
2402 – 2480 MHz
HBC features
Catch-release
The catch-release function allows control of a crane or machine with two or more radio controls. Two or more operators can take turns working with the same crane or machine without having to switch the control device.
radiomatic® zero-g / inclination switch
The safety features can detect different dangerous situations and depending on the desired version, react in one of the following manners:
- The complete radio system will shut down.
- Safety-relevant functions will be deactivated.
- A previously defined function will be activated (e.g. horn).
merlin® TUC (Transmitter User Card) – user identification
The merlin® TUC (Transmitter User Card) serves as the key to start up the radio control.
