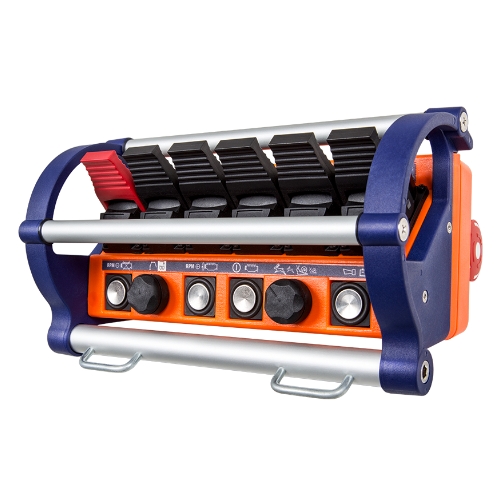

Linus 6

The classic with linear levers for 6 stepless drives.

Operation

Operating elements & control functions

6 linear levers
6 positions for diverse combinations of push buttons, toggle switches and rotary switches (maintained / spring-return)
STOP impact switch
Up to 5 control functions (on / off)
Up to 6 analog functions

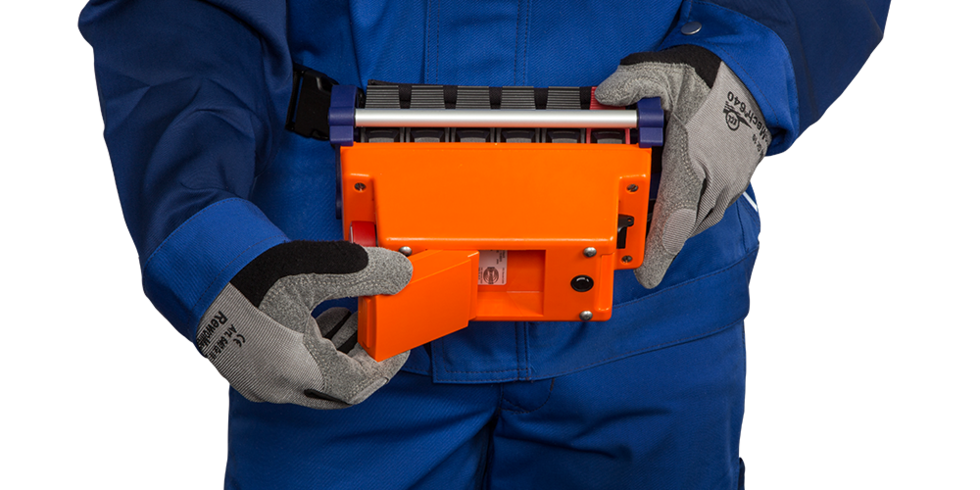

Battery technology

Housing material / protection class:

Plastic housing,
Protection class IP 65

Operating temperature range:

-25 °C … +70 °C
(-13 °F … +158 °F)

Weight:

approx. 1.5 kg (3.31 lbs.)

Dimensions:

218 x 88 x 167 mm
(8.58 x 3.46 x 6.57 in.)

Protection from unauthorized use

Activation via HBC start sequence.

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

radiomatic^® AFS stands for Automatic Frequency Selection.

Your advantages:

To switch the frequency, the operator simply has to turn the transmitter off and on again. The radio system then automatically finds a free channel.
This process is thus a quick and easy solution for the operator.

How it works:

When the transmitter is turned on, the radio system checks if the radio channel that was last used is available.
If this channel is occupied, the radio system automatically switches to a free radio channel.
If there are frequency conflicts later on, the operator simply turns the transmitter off and on again.
radiomatic^® AFS immediately searches for a free radio channel.
