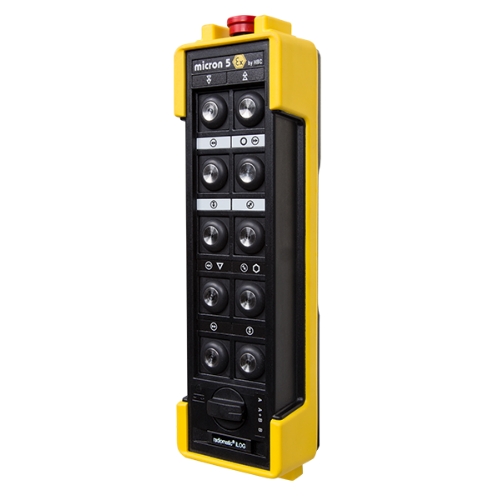

Micron 5 EX

First-class micron quality with Ex approval.

Categories: HBC-radiomatic, Transmitters

Operation

Operating elements & control functions

10 two-step push buttons
Rotary switch
STOP impact switch
Up to 25 control functions (on / off)

Battery technology

Rechargeable NiMH exchange battery
Continuous operating time: up to 12 hours

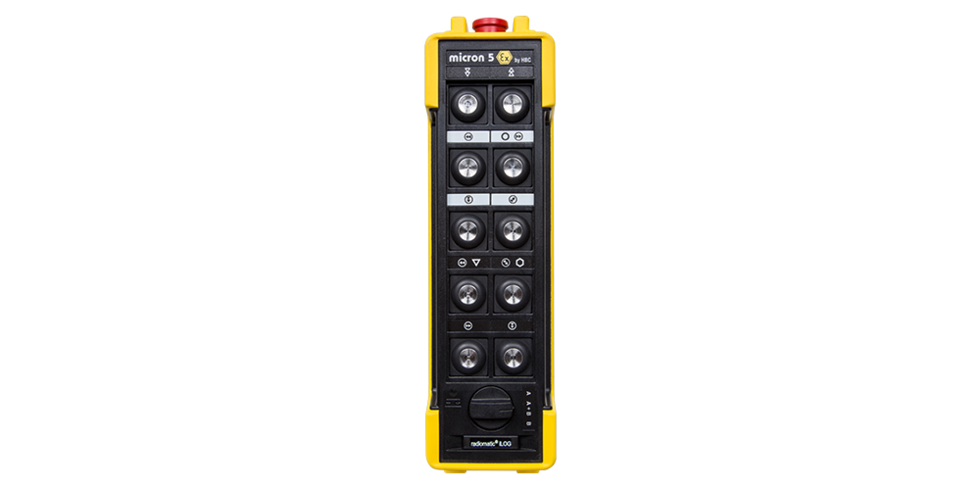

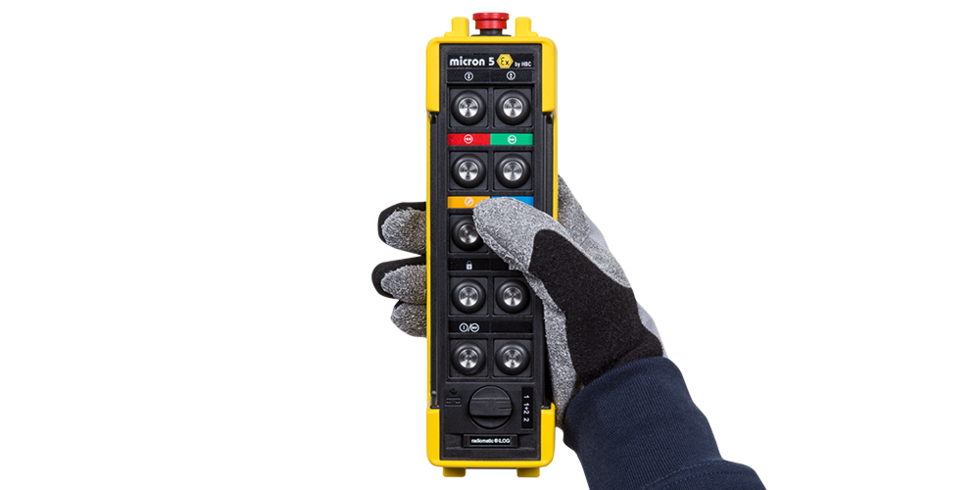

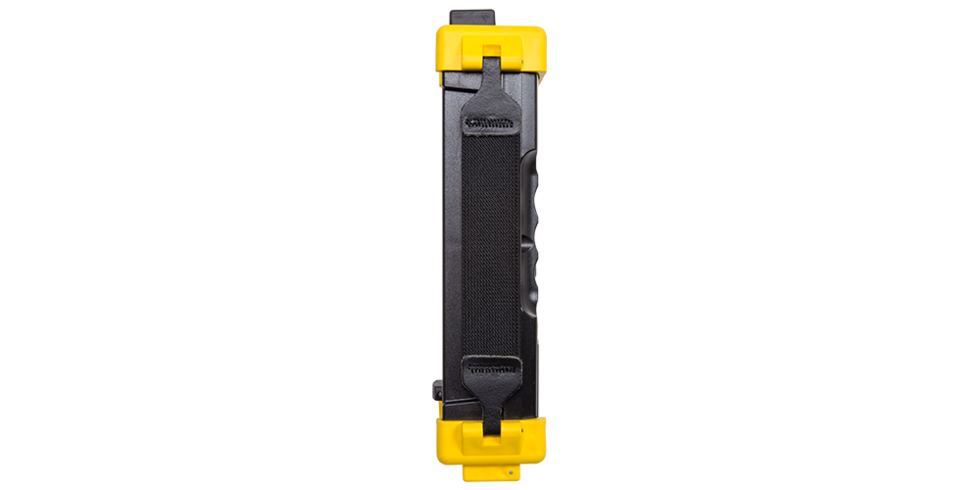

Dimensions & specifications

Housing material / protection class:

Plastic housing,
Protection class IP 65

Operating temperature range:

-20 °C … +60 °C
(-4 °F … +140 °F)

Weight:

approx. 550 g (1.2 lb.)

Dimensions:

243 x 83 x 59 mm
(9.6 x 3.3 x 2.3 in.)

Safety

Protection from unauthorized use

Activation via HBC start sequence or merlin^® TUC.

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Approvals

We offer the following Ex approvals:

Typical applications

Frequency management

Manual frequency switch

With the manual frequency switch, the operator can switch to the next radio channel by pressing a button.

Your advantages:

The process is easy to understand and offers a quick solution.

How it works:

To switch the radio channel the operator presses the Start button.
If this channel is occupied by another device, it is possible to switch again to the next frequency.
16 radio channels are available.

radiomatic® AFS

radiomatic^® AFS stands for Automatic Frequency Selection.

Your advantages:

To switch the frequency, the operator simply has to turn the transmitter off and on again. The radio system then automatically finds a free channel.
This process is thus a quick and easy solution for the operator.

How it works:

When the transmitter is turned on, the radio system checks if the radio channel that was last used is available.
If this channel is occupied, the radio system automatically switches to a free radio channel.
If there are frequency conflicts later on, the operator simply turns the transmitter off and on again.
radiomatic^® AFS immediately searches for a free radio channel.

Frequency ranges

2.4GHz Technology

country-independent use:
2402 – 2480 MHz

HBC features

Tandem operation

Tandem operation allows the operator to control up to 4 cranes simultaneously with just one transmitter.

Pre-selection of trolley / hoist

With this function, where 2 trolleys are available, the operator can select either an individual trolley or both trolleys for simultaneous control.

Catch-release

The catch-release function allows control of a crane or machine with two or more radio controls. Two or more operators can take turns working with the same crane or machine without having to switch the control device.
