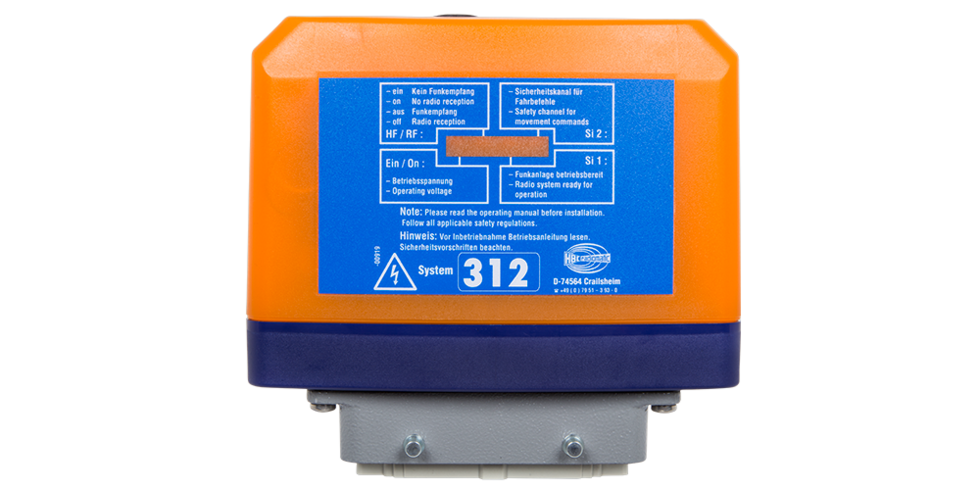

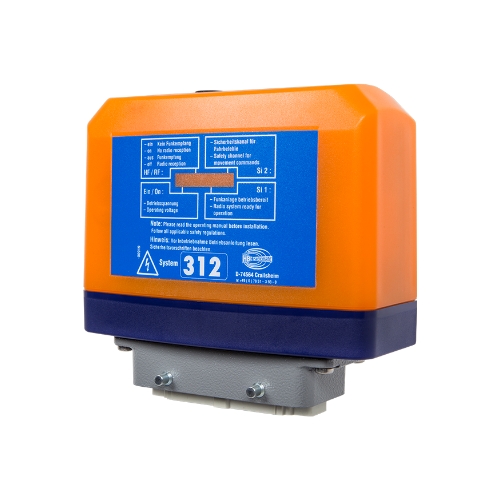

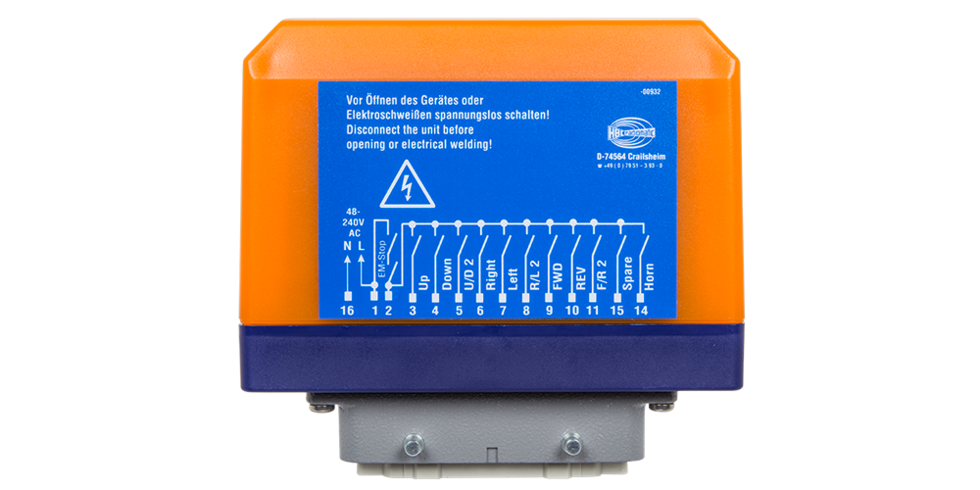

FSE 312

Tailor-made radio technology for standard industrial cranes

Categories: HBC-radiomatic, Receivers

Dimensions & specifications

Control functions

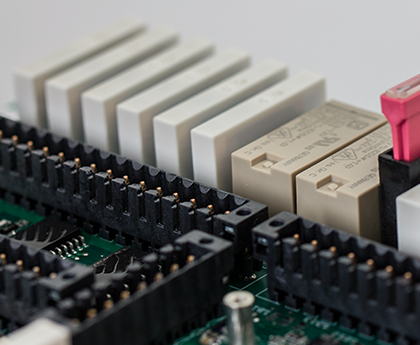

Output of 12 control functions (on / off)

Housing material / protection class:

Plastic housing,
Protection class IP 65

Operating temperature range:

-25 °C … +70 °C
(-13 °F … +158 °F)

Weight:

680 g (24 oz.)

Dimensions:

150 x 141 x 64 mm

Power supply:

24 V AC, 48 – 240 V AC

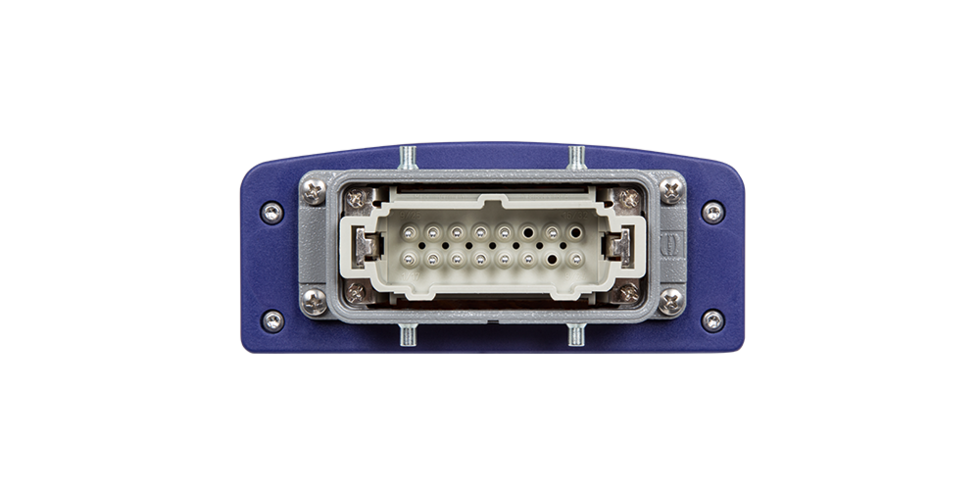

Connection:

HAN®-16B or HAN®-24B

Installation:

direct mounting
Antenna

internal

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Indication

LEDs for the indication of operating status

Integrated signal light for the indication of ratio operation

Integrated horn (91 dB)

Adaptive Frequency Hopping

HBC’s advanced fully automatic frequency management comes standard with all our 2.4 GHz radio systems.

Your advantages:

A manual frequency coordination with other radio users is not necessary.
The operator can work without interruption, even in areas with many radio users. This saves valuable time.
This technology is approved almost worldwide, which makes warehousing much easier: instead of different country-specific high frequency modules, in most cases, just a single 2.4 GHz module can be used.
In countries where HBC radio systems are approved, the 2.4 GHz technology is available without registration or license fees. This saves costs and effort.

How it works:
