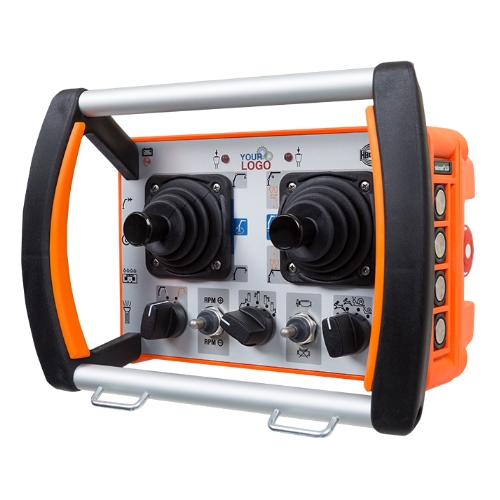

Spectrum 1

Rugged quality for the control of cranes and machines.

Category:

Description

Operation

Operating elements & control functions

  • Up to 2 joysticks or up to 6 linear levers
  • Diverse combinations of push buttons, toggle switches and rotary switches (maintained / spring-return)
  • STOP impact switch

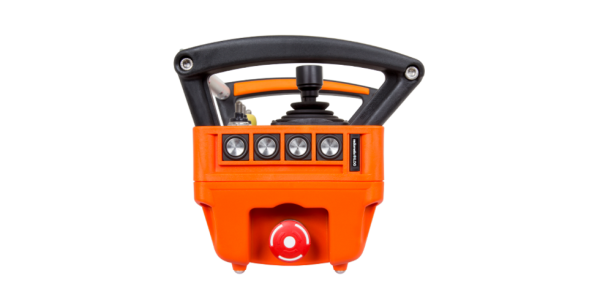

  • On the side: up to 8 push buttons
  • Up to 32 control functions (on / off)
  • Up to 6 analog functions for joysticks / linear levers
  • Up to 4 additional analog functions, e. g. for potentiometer switches

Optional:

  • Joystick with integrated button
  • Z-axis switch for the simultaneous control of 3 drives

Battery technology

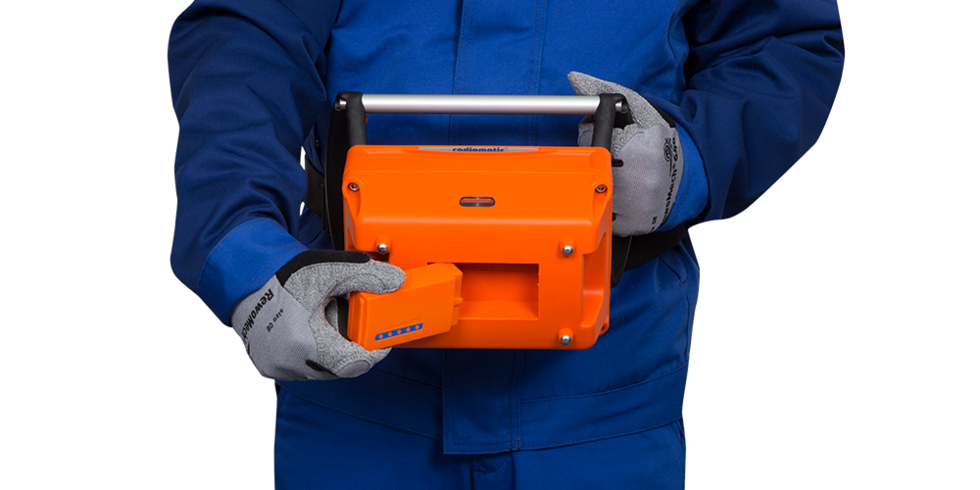

  • Rechargeable Li-ion exchange battery; optional: capacity gauge via LEDs
  • continuous operating time: typically 40 hours

Dimensions & specifications

Housing material / protection class:

Plastic housing,
Protection class IP 65

Operating temperature range:

-25 °C … +70 °C
(-13 °F … +158 °F)

Weight:

approx. 2.0 kg (4.41 lbs.)

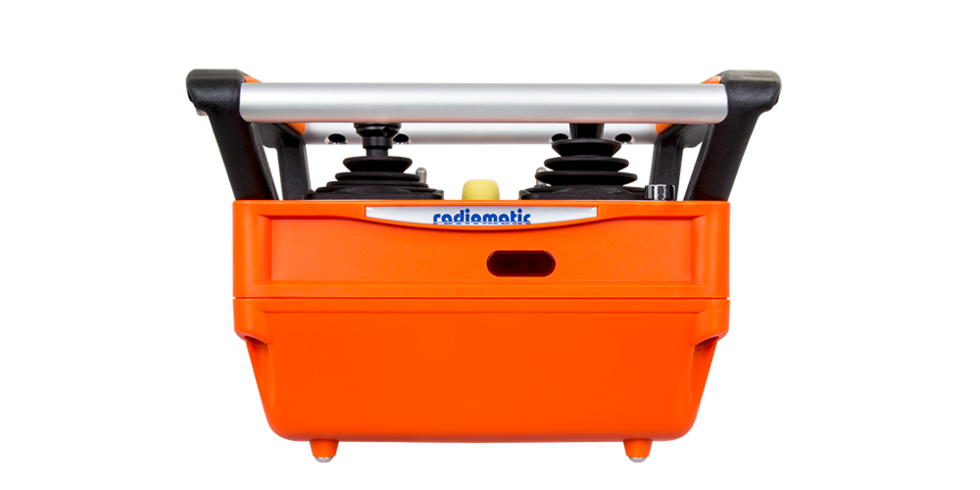

Dimensions:

178 x 262 x 182 mm
(7.00 x 10.31 x 7.17 in.)

Safety

Safety

Protection from unauthorized use

Activation via HBC start sequence or merlin® TUC.

E-STOP

PL d category 3 according to EN ISO 13849-1:2015

Auto Power Off

Automatic deactivation of the transmitter after preset time without command input
(standard: 15 min)

Frequency

Frequency management

Manual frequency switch

With the manual frequency switch, the operator can switch to the next radio channel by pressing a button.

Your advantages:

  • The process is easy to understand and offers a quick solution.

How it works:

  • To switch the radio channel the operator presses the Start button.
  • If this channel is occupied by another device, it is possible to switch again to the next frequency.
  • 16 radio channels are available.

Frequency ranges

2.4GHz Technology

country-independent use:
2402 – 2480 MHz

HBC features

HBC features

Tandem operation

Tandem operation allows the operator to control up to 4 cranes simultaneously with just one transmitter.

Pre-selection of trolley / hoist

With this function, where 2 trolleys are available, the operator can select either an individual trolley or both trolleys for simultaneous control.

Catch-release

The catch-release function allows control of a crane or machine with two or more radio controls. Two or more operators can take turns working with the same crane or machine without having to switch the control device.
